Managing Databases

If you already connected your database during the installation, you’ve probably a covered a lot of this info. But if you need to add another database or manage the settings of the one you already have connected, just click the circle with your initials in the top right of Metabase and select the Admin Panel.

Cool, now you’re in the admin panel. Next, select Databases from the menu bar at the top of the screen to see your databases.

Adding a Database Connection

Now you’ll see a list of your databases. To connect another database to Metabase, click Add database. Metabase currently supports the following types of databases:

• Amazon Redshift
• Google BigQuery
• H2
• MongoDB (version 3.0 or higher)
• MySQL (version 4.1 or higher, as well as MariaDB)
• Postgres
• SQLite
• SQL Server
• Driud
• CrateDB
• Oracle
• Vertica

To add a database, you’ll need its connection information.

Getting connection information for Databases on Heroku:

1. Go to https://postgres.heroku.com/databases.
2. Click on the database you want to connect to Metabase.
3. Write down the following information based on your database:
   • Hostname
   • Port
   • Username
   • Database Name
   • Password

Getting connection information for Databases on Amazon’s RDS:

1. Go to your AWS Management Console.
   • Need help finding that? Visit https://My_AWS_Account_ID.signin.aws.amazon.com/console. Be sure to insert your own AWS Account ID, though!
2. Under “Database” services, click “RDS”.
3. Then click “Instances”.
4. Select the database you want to connect to Metabase.
5. Write down the following information based on your database:
   • Hostname - This is listed as the “Endpoint” parameter
   • Port - Find the port parameter under “Security and Network”
   • Username - Find this under “Configuration Details”
   • Database Name - Find this under “Configuration Details”
   • Password - Ask your database administrator for the password.

Secure Socket Layer (SSL)

Metabase automatically tries to connect to databases with and without SSL. If it is possible to connect to your database with a SSL connection, Metabase will make that the default setting for your database. You can always change this setting later if you prefer to connect without this layer of security, but we highly recommend keeping SSL turned on to keep your data secure.

Database Analysis

When Metabase connects to your database, it tries to decipher the field types in your tables based on each field’s name. Metabase also takes a sample of each table to look for URL’s, json, encoded strings, etc. If a field is classified wrong, you can always manually edit it from the Metadata tab in the Admin Panel.

Metadata Syncing

Metabase maintains it’s own information about the various tables and fields in each Database that is added to aid in querying. This information is generally updated once each night to look for changes to the database such as new tables, but if you’d like to sync your database manually at any time:

NOTE: Metabase does NOT copy any data from your database, it only maintains lists of the tables and columns.

1. Go to the Admin Panel.

2. Select Databases from the navigation menu.

3. Click on the database you would like to sync.

4. Click on the Sync button on the right of the screen.

Deleting Databases

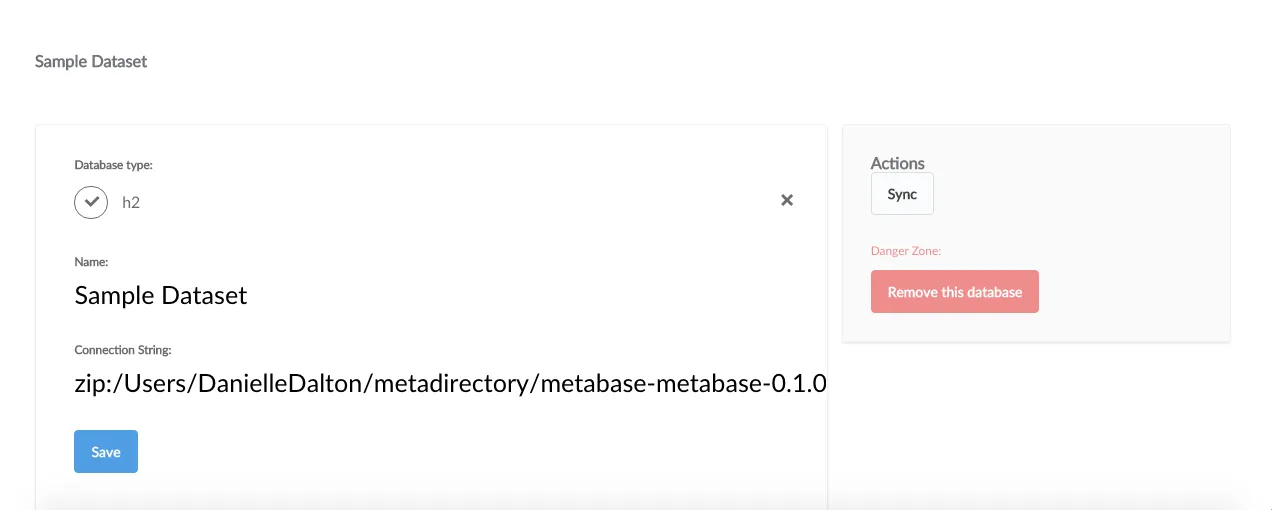

To delete a database from Metabase, click on Remove this database from the database detail screen.

You can also delete a database from the database list: hover over the row with the database you want to remove and click the Delete button that appears.

Caution: Deleting a database is irreversible! All saved questions and dashboard cards based on the database will be deleted as well!

SSH Tunneling In Metabase

Metabase has the ability to connect to some databases by first establishing a connection to a server in between Metabase and a data warehouse, then connect to the data warehouse using that connection as a bridge. This makes connecting to some data warehouses possible in situations that would otherwise prevent the use of Metabase.

When To Use This Feature

There are two basic cases for using an SSH tunnel rather than connecting directly:

• A direct connection is impossible
• A direct connection is forbidden due to a security policy

Sometimes when a data warehouse is inside an enterprise environment, direct connections are blocked by security devices such as firewalls and intrusion prevention systems. To work around this many enterprises offer a VPN, a bastion host, or both. VPNs are the more convenient and reliable option though bastion hosts are used frequently, especially with cloud providers such as Amazon Web Services where VPC (Virtual Private Clouds) don’t allow direct connections. Bastion hosts offer the option to first connect to a computer on the edge of the protected network, then from that computer establish a second connection to the data warehouse on the internal network and essentially patch these two connestions together. Using the SSH tunneling feature, Metabase is able to automate this process in many cases. If a VPN is available that should be used in preference to SSH tunneling.

How To Use This Feature

When connecting though a bastion host:

• Answer yes to the “Use an SSH-tunnel for database connections” parameter
• Enter the hostname for the data warehouse as it is seen from inside the network in the Host parameter.
• Enter the data warehouse port as seen from inside the network into the Port parameter.
• Enter the extenal name of the bastion host as seen from the outside of the network (or wherever you are) into the SSH tunnel host parameter.
• Enter the ssh port as seen from outside the network into the SSH tunnel port parameter. This is usually 22, regardless of which data warehouse you are connecting to.
• Enter the username and password you use to login to the bastion host into the SSH tunnel username and SSH tunnel password parameters.

If you are unable to connect test your ssh credentials by connecting to the SSH server/Bastion Host using ssh directly:

ssh <SSH tunnel username>@<SSH tunnel host> -p <SSH tunnel port>

Another common case where direct connections are not possible is when connecting to a data warehouse that is only accessible locally and does not allow remote connections. In this case you will be opening an SSH connection to the data warehouse, then from there connecting back to the same computer.

• Answer yes to the “Use an SSH-tunnel for database connections” parameter
• Enter localhost in the Host parameter. This is the name the server
• Enter the same value in the Port parameter that you would use if you where sitting directly at the data warehouse host system.
• Enter the extenal name of the data warehouse, as seen from the outside of the network (or wherever you are) into the SSH tunnel host parameter.
• Enter the ssh port as seen from outside the network into the SSH tunnel port parameter. This is usually 22, regardless of which data warehouse you are connecting to.
• Enter the username and password you use to login to the bastion host into the SSH tunnel username and SSH tunnel password parameters.

If you have problems connecting verify the ssh host port and password by connecing manually using ssh or PuTTY on older windows systems.

Disadvantages to Indirect Connections

While using an ssh tunnel makes it possible to use a data warehouse that is otherwise not accessible it is almost always preferable to use a direct connection when possible:

There are several inherent limitations to connecting through a tunnel:

• If the enclosing SSH connection is closed because you put your computer to sleep or change networks, all established connections will be closed as well. This can cause delays resuming connections after suspending your laptop
• It’s almost always slower. The connection has to go through an additional computer.
• Opening new connections takes longer. SSH connections are slower to establish then direct connections.
• Multiple operations over the same SSH tunnel can block each other. This can increase latency in some cases.
• The number of connections through a bastion host is often limited by organizational policy.
• Some organizations have IT security policies forbidding using SSH tunnels to bypass security perimeters.

What if The Built in SSH Tunnels Don’t Fit My Needs?

This feature exists as a convenient wrapper around SSH and automates the common cases of connecting through a tunnel. It also makes connecting possible from systems that don’t have or allow shell access. Metabase uses a built in SSH client that does not depend on the installed system’s ssh client. This allows connecting from systems where it’s not possible to run SSH manually, it also means that Metabase cannot take advantage of authentication services provided by the system such as Windows Domain Authentication or Kerberos Authentication.

If you need to connect using a method not enabled by Metabase, you can often accomplish this by running ssh directly:

ssh -Nf -L input-port:internal-server-name:port-on-server username@bastion-host.domain.com

This allows you to use the full array of features included in ssh. If you find yourself doing this often, please let us know so we can see about making your process more convenient through Metabase.

Next: enabling features that send email

Metabase can send emails for certain features, like email invites, but first you need to set up an email account.
